CABLE PROWLER™ CABLE TESTER & REPORT MANAGEMENT

Category:

Description

Full Color Cable Testing & Report Management

Cat 3/5e/6/6a, Coax, and Telephone Cable

The Cable Prowler™ combines the functions of a high-end cable tester and length measurement tester, with the capability to identify link status, link capability, and PoE detection. All of this is in full color and internal memory to save results.

  • Displays length measurement for each pair in feet or meters using TDR technology

  • Detects presence of PoE and class of PoE per IEEE 802.3af/at with load test for voltage drop
  • Detects and reports current link speed and link capabilities for active Ethernet drops up to 1 Gbps
  • Link light to identify location on a hub/switch/router port
  • Tests ethernet cable configuration and verifies connectivity while conducting tests for opens, shorts, miswires, split pairs, and reverses
  • Generates selectable tones on selected pins for use with tone tracers
  • Supports up to 8 testing & ID remotes for network & telephone cables
  • Supports up to 20 network & coax ID – only mapping remotes
  • View saved cable tests
  • Full color graphical wire-mapping
  • Ability to define cable name, save cable tests and print ALL results (cable testing & network testing)
  • Multilingual (English, French, Spanish, German, Italian)



Description Download
Cable Prowler Specification Sheet                                                   PDF Download PDF
Cable Prowler Quick Start Guide PDF Download PDF
Cable Prowler User Manual PDF Download PDF

Overview

Cable Testing

The Cable Prowler™ provides full cable testing on any category network, coax, or telephone cable. It will display wire map, numbered ID remotes, and any faults, including shorts, opens, miswires, split pairs, and reverses. The full-featured Cable Prowler™ measures cable length (using TDR technology) and generates tone levels for signal tracing and cable identification on all pairs, a selected pair, or a selected pin. All of this is displayed in a full color graphical display for easy viewing in any environment. Cable Prowler™ also has the ability to name each cable and save all test results. Cable results can be exported to a computer via micro USB cable for record keeping and printing.

Network – PoE Testing

The Cable Prowler™ enables quick identification of a network drops link capability and current link status. Cable Prowler™ also detects the presence of PoE on the network drop and what class of PoE per IEEE 802.3 af/at with load test for voltage drop. These network tests can also be saved for record keeping and printing.

Applications

Measure cable length and length to faults using TDR technology
Network testing of link capability, link status, and link light
Test PoE to ensure adequate power for powered devices such as VoIP phones
Conduct single ended and remote cable tests with display of PASS, wire map, ID, and faults for network & coax cables
Tone and trace cables
Locate unlabeled network & coax cables with up to 20 remote identifiers
Test multiple (up to 8) network & telephone drops with testing & identifier remotes
Define a cable name for your cable test, save every cable test, export to your computer for record keeping and printing



Features

Physical Features

High resolution full color graphical display
Displays wire map in color per TIA-568A/B color codes, in pin or pair order (configurable)
Protective silicone holster
Micro USB connector (to export cable reports), RJ45 connector, and Coax connector



SPECIFICATIONS

Measurement Technology Time Domain Reflectometry (TDR)
Cable Measurements Cable Testing and ID: up to 1000 ft (305 m)
Split Pair Detection: 3 ft (1 m) to 1,000 ft (305 m)
Length Measurement: 0 to 1,500 ft (457 m), ± (5%+1ft)
Supports 8 continuity and ID number remotes (RJ-45)
Supports 20 RJ-45 and 20 F-connector ID only remotes
Power over Ethernet Tests for IEEE 802.3af and IEEE 802.3at (PoE Plus) compliant PoE
Tests for classes and loads cable up to 25.5 watts
(at class 4) Identifies Mode A or B (pairs with PoE)
Active Ethernet Indicates advertised speeds of 10/100/1000base-t half or full duplex
Can Link to network at 10/100base-t
Maximum Voltage Parameters refer to the maximum voltage that can be applied to any 2 connector pins without causing damage to the tester.
• RJ Jack: 66 Vdc or 55 Vac
• F-connector: 50 Vdc or Vac
Save Test Results Stores up to 250 Cable or network tests with user defined names
Tone Generation Tone Frequencies: 730 Hz and 1440 Hz
Languages English, French, Spanish, German, Italian
Battery Life For 6 x AA, 9VDC, 2,200 mA-hr (typical) alkaline battery:
Operating – 20 hours typical
Standby – 1.5 years typical
(200uA max standby current)
Batteries are included
Altitude 10,000 ft (3048 m) operating
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -22 to +140°F (-30 to 60°C)
Humidity 10 to 90% non-condensing
Enclosure High-strength PC/ABS plastic with V0 rating with boot
Withstands 4 foot drop on to concrete
Size 1.85”H x 3.6”W x 6.8”L (4.7 x 9.15 x 17.3 cm)
Weight With batteries: 1 lb 2 oz (510 g)
Safety Compliances CE
Warranty 1 Year



OPTIONAL ACCESSORIES

Product Number Description


AD004

F-Connector Coupler: F81

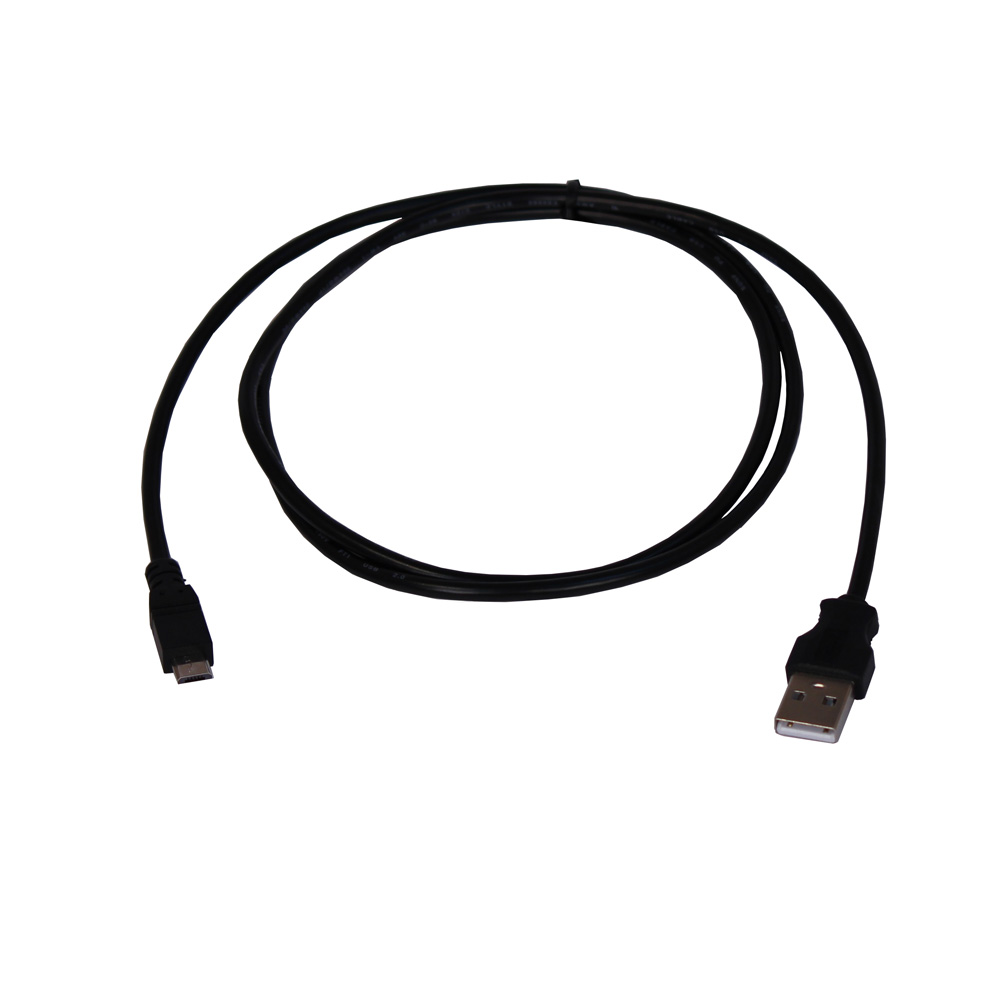

CA007

Cable Assembly: Micro USB to USB

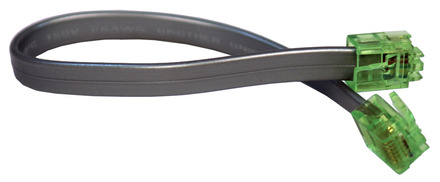

CA012

Cable Assembly: RJ12, 1-1 pinned, 8 inch


CP100

Hanging T3 Pouch

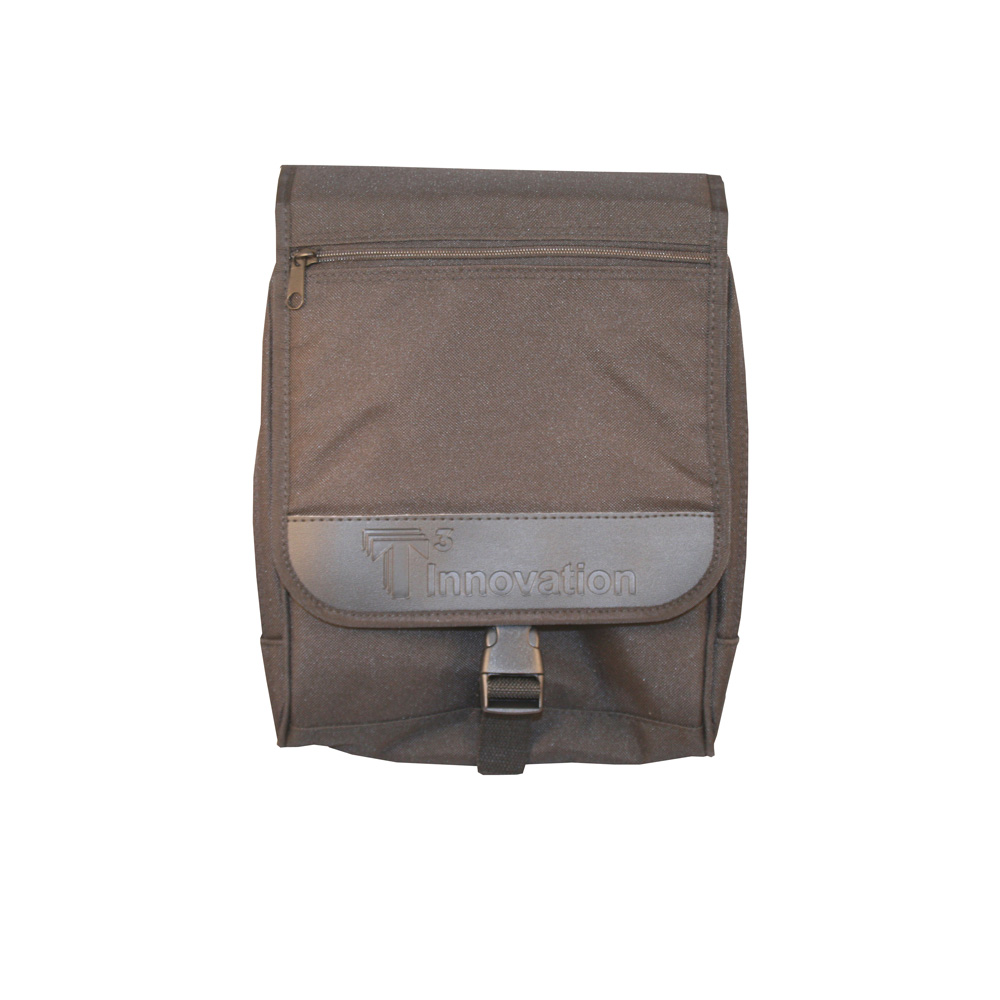

CP200

Large T3 Pouch

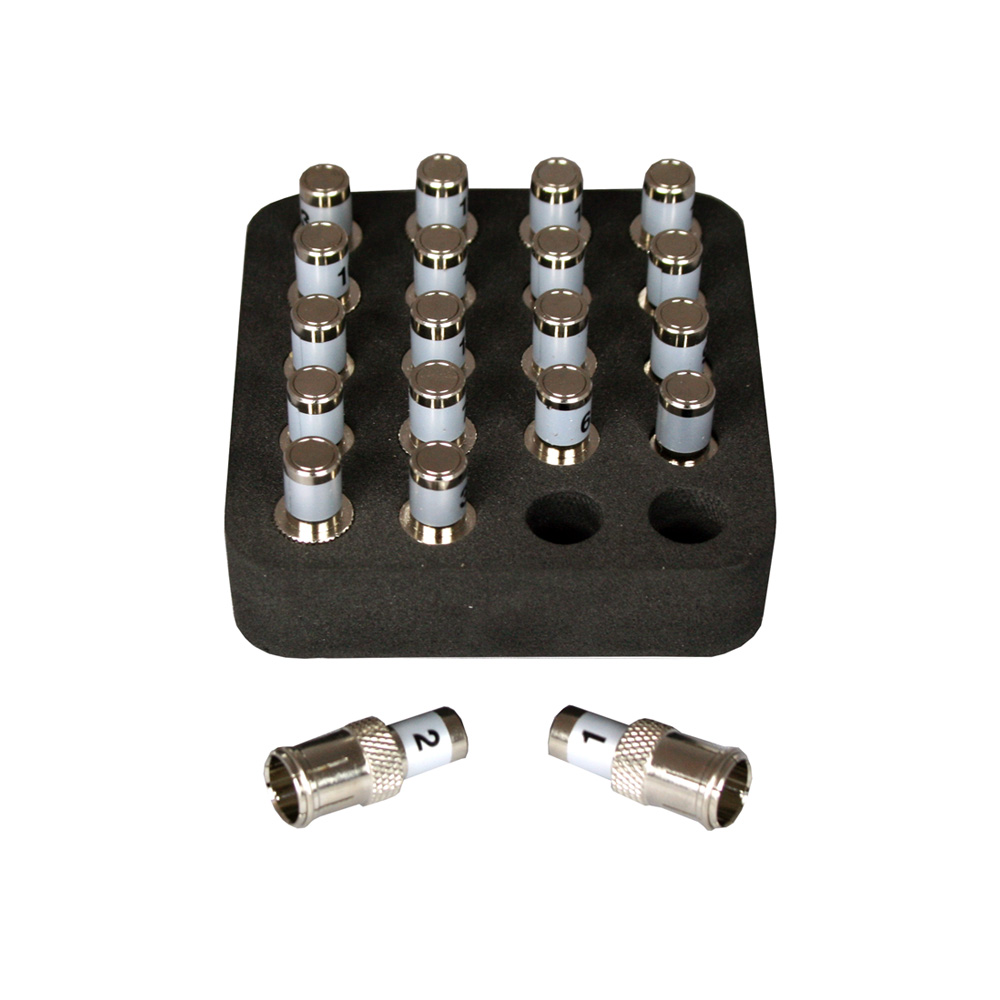

RK120

Coax ID Remote Set:
#1-20 coax ID includes foam holder

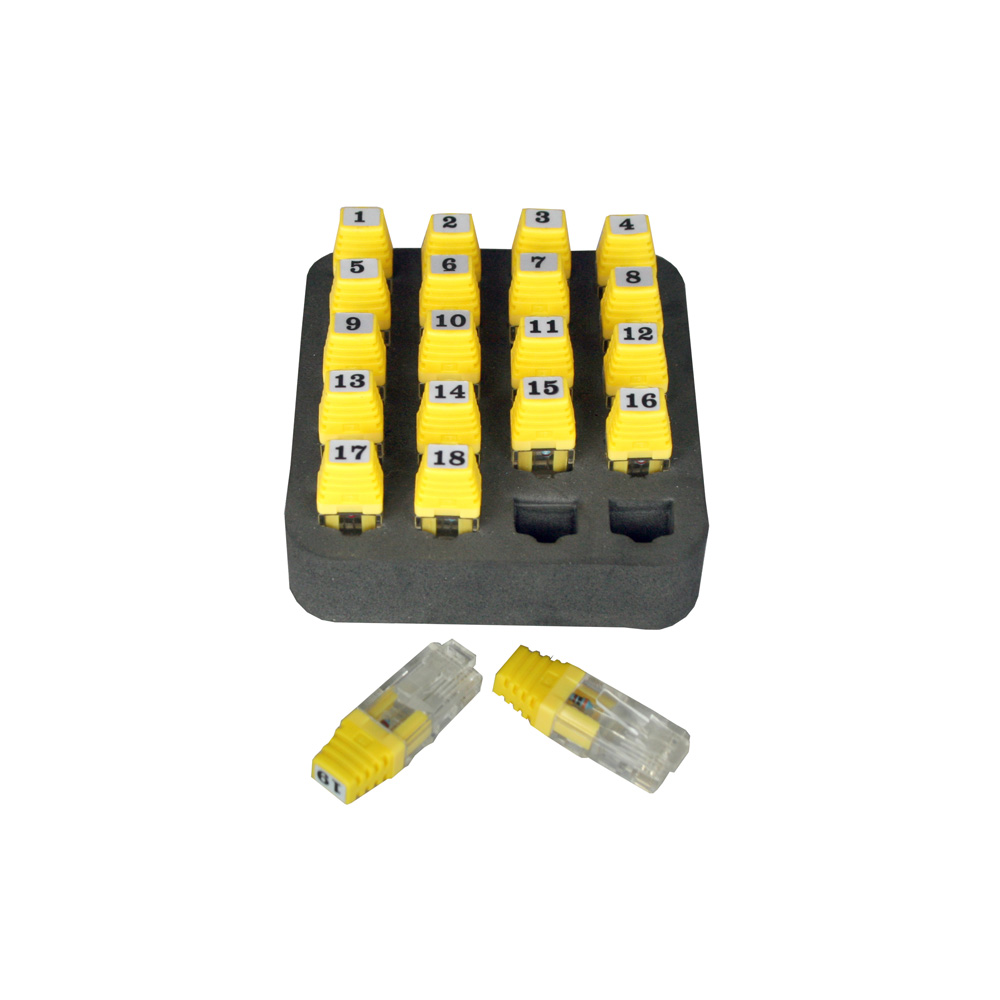

RK220

Network ID Only Remote Set:
#1-20 includes foam holder

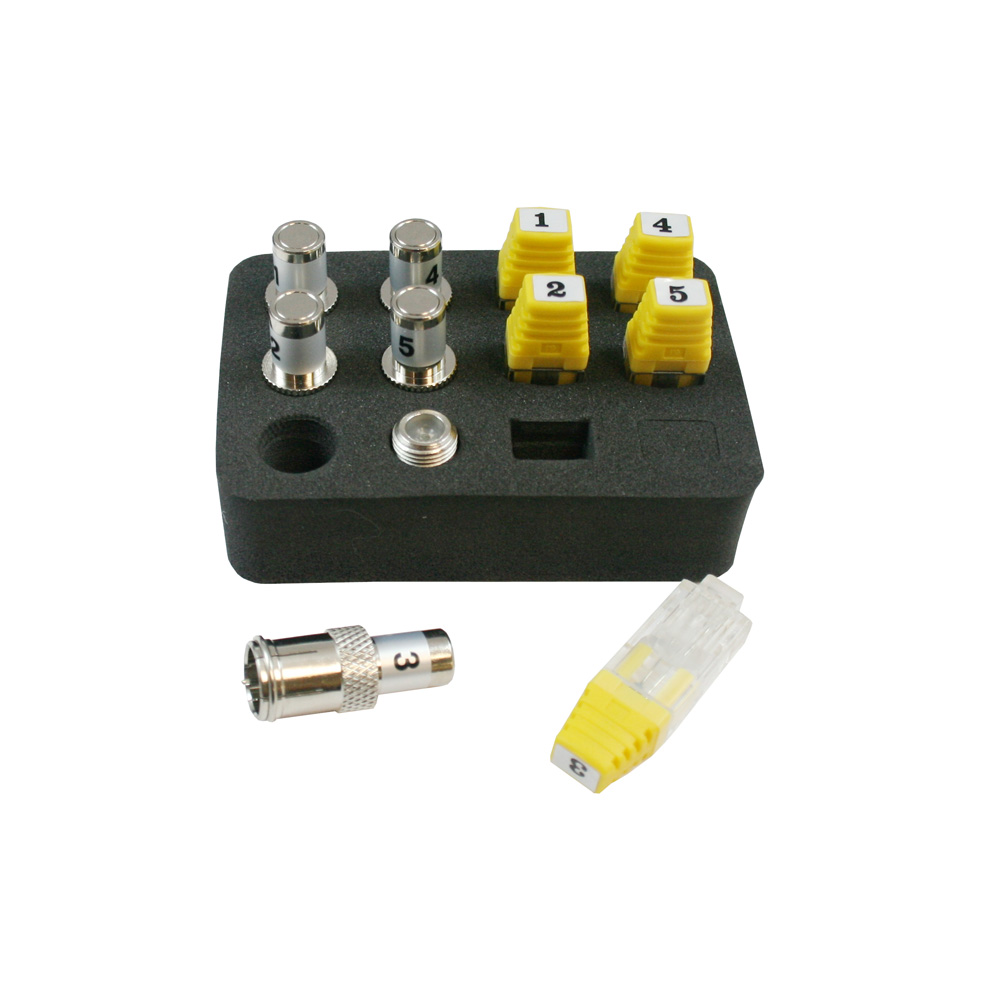

RK305

Coax and Network Remote Set:
#1-5, F-Conn Coupler includes foam holder

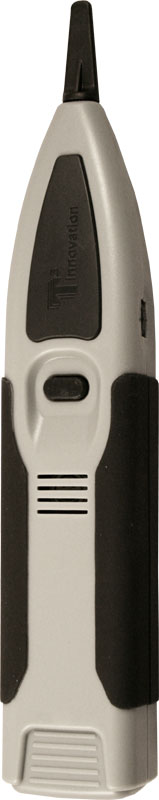

TP200

TrakAll: tone generator and probe

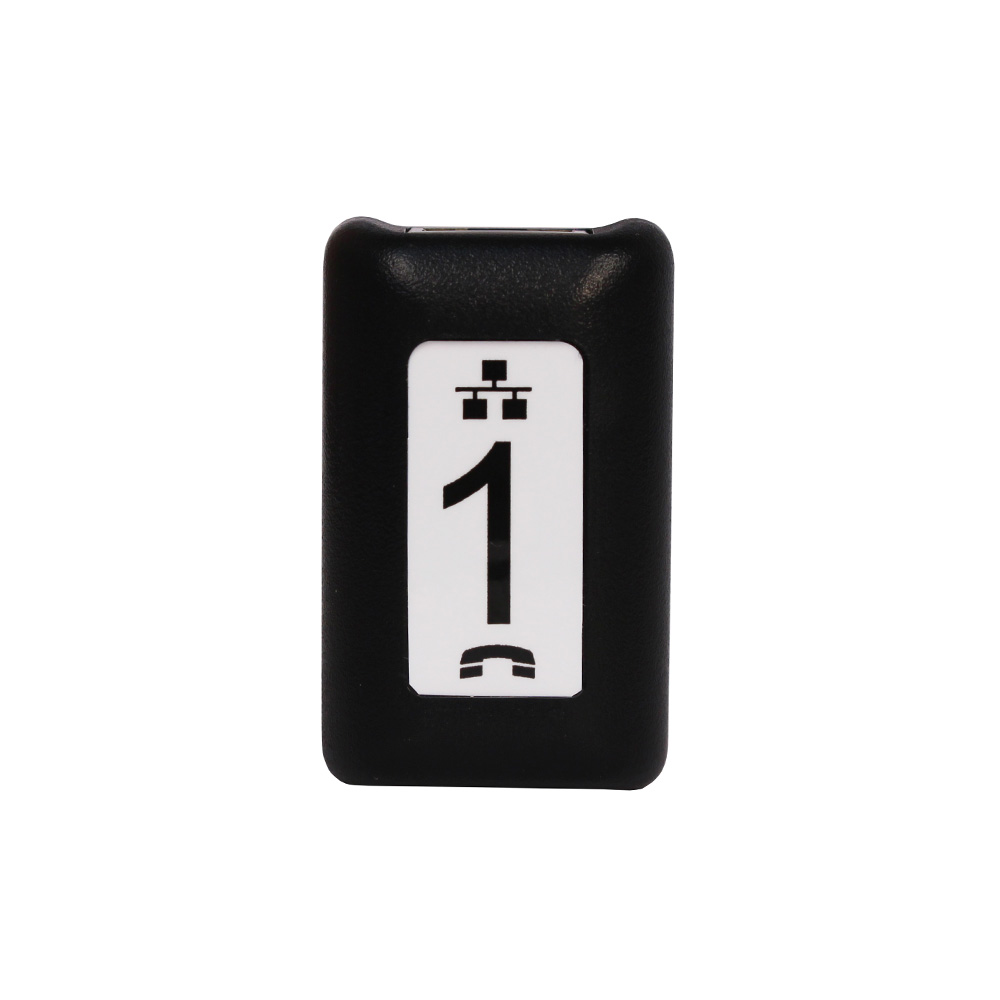

TT001

Network & Telephone Testing/ID Remote #1

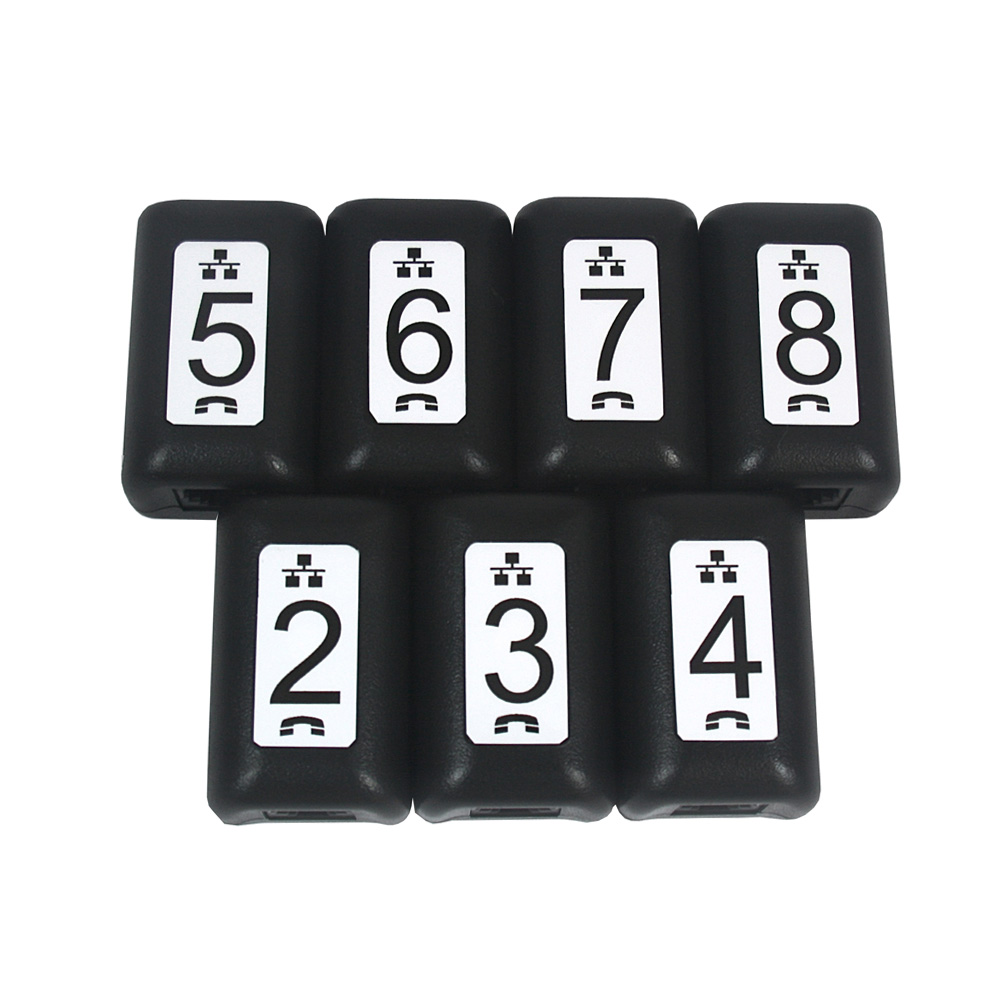

TT208

Network & Telephone Testing/ID Remotes #2-8
